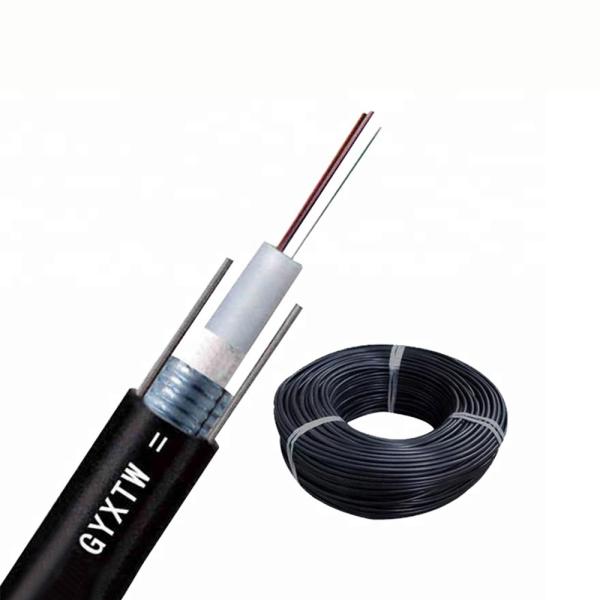

Factory LSZH 8/12/24 Core Fiber Optic Armoured Cable (GYXTW)
The single mode fiber optic cables are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system Two parallel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Characteristics
1. Single jelly compound filled loose tube containing up to 24 fibers
2. Waterproof tape between the steel tape and loose tube with jelly compound.
3. Duble-sided PE corrugated steel tape armored.
4. Parallel double steel wire as strength member.
5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.
Applications
1. Suitable for ducts & aerial.
2. Long distance communication system.
3. Local area network system.
4. Subsriber network.
Technology Specification
| Out sheath | Tight buffer | Weight | Minimum allowable | Minimum allowable Crush Load | Minimum Bending Radius | Storage |
| Diameter | Diameter | |
Tensile Strength(N)
| (N/100mm) | (MM) | | temperature(°C) |
| (MM) | (MM) | (KG) | short term | long Term | short term | long term | short term | long term | -40+60 |
| 2-12 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 14-24 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| | | A1b:62.5/125 |
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
| G.652D | | B2: Zero dispersion shifted |
| G.655 | | B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) | B4: Main technical data for positive |
| dispersion shifted single-mode fiber |
Product Structure
Packaging & Shipping
Internetional fiber optic cable prices exporting experiences more than 10 years. If you have any questions about packing or shipping, we can offer you our best services. Inculding firming the packing or arranging the shipping with shipping company.
Company Information
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
Exhibation
Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed RoHS, ISO9001 and TLC certifications.
Our Principles
Full customer satisfaction
Commitment to high-quality service
Long-term cooperation and profits for each other
